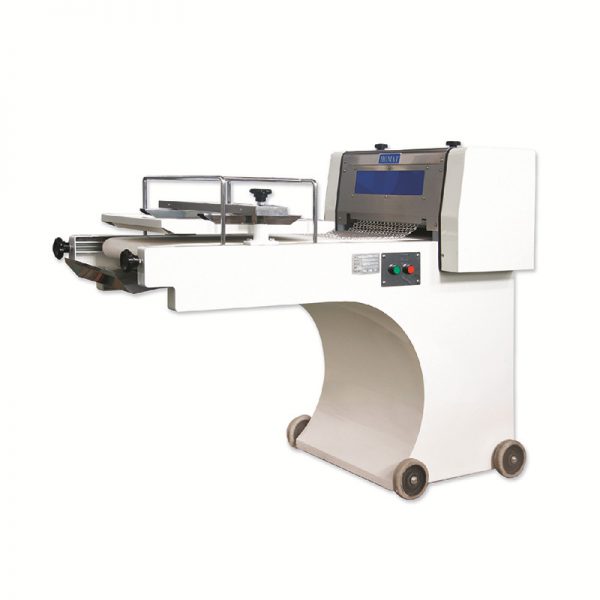

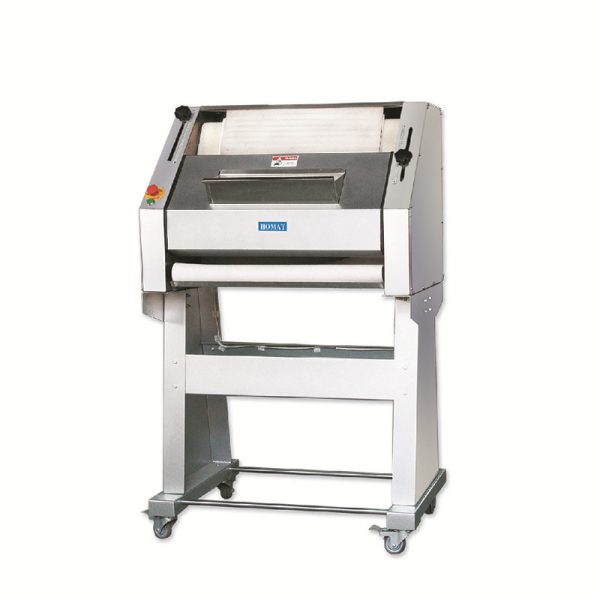

Moulder Specification
| Model | HM-230J | HM-307 | HM-380 |
| Capacity(g) | 30~350 | 50~1000 | 50~1250(shaping width 780mm) |
| Voltage(V) | 380 | 380 | 380 |
| Power(Kw) | 0.5 | 0.75 | 0.55 |
| Weight(kg) | 160 | 220 | 290 |
| Capacity | 1800 pieces/hour | 2000 pieces/hour | 2500 pieces/hour |
| Length(mm) | 540 | 580 | 1100 |
| Depth(mm) | 1040 | 1340 | 765 |
| Height(mm) | 1240 | 1100 | 1650 |
1.Inspect by Quality Inspect Dept. before packing
2.After approved,clean thoroughly
3.Put desiccant inside to prevent damage by humid air,because the humidity is 15 times higher than normal while shipping
4.Put 6cm thick foam board around
5.Fasten with stretch film around,bubble film,and stretch film again
6.Wooden packing, and reinforce with steel belt
7.According to different products, reinforce before loading to the container to prevent damage in transport
