Detail
□ Pressing paste,for puff pastry bread,croissant and so on

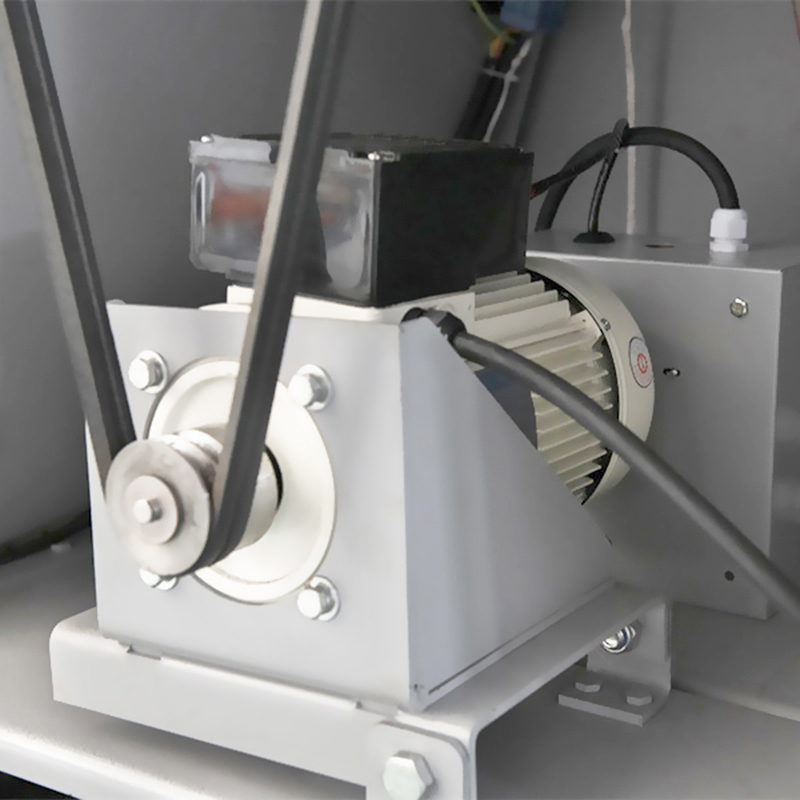

□ Oil immersed design make sure strong driving and low noise
□ Imported electronic components,equipped with overload and phase loss protection

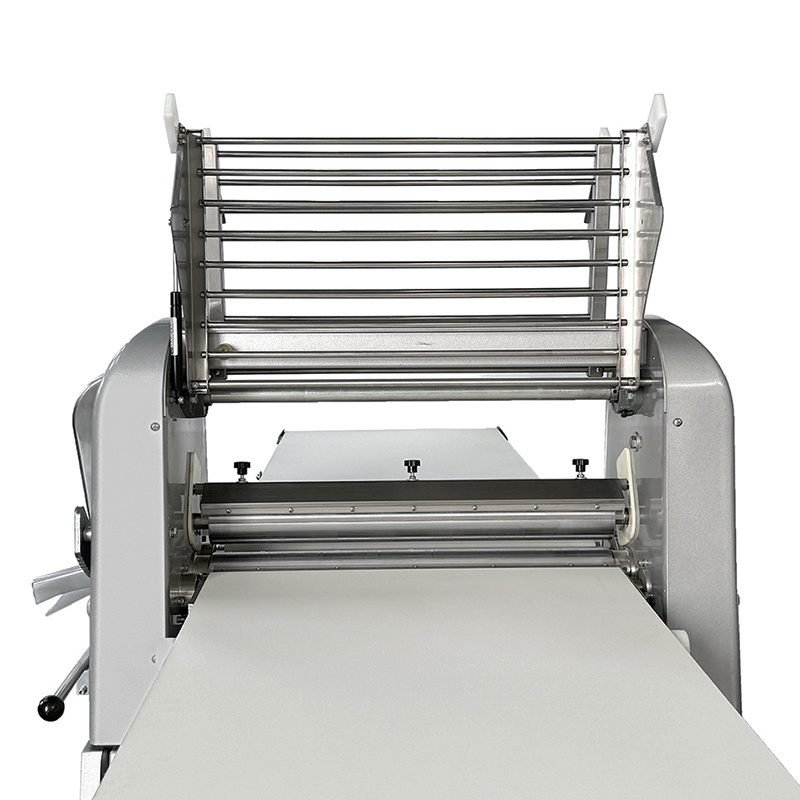

□ Fold-up conveyor,and thickness of dough can be 1mm
□ Reversible action (forward reverse action)

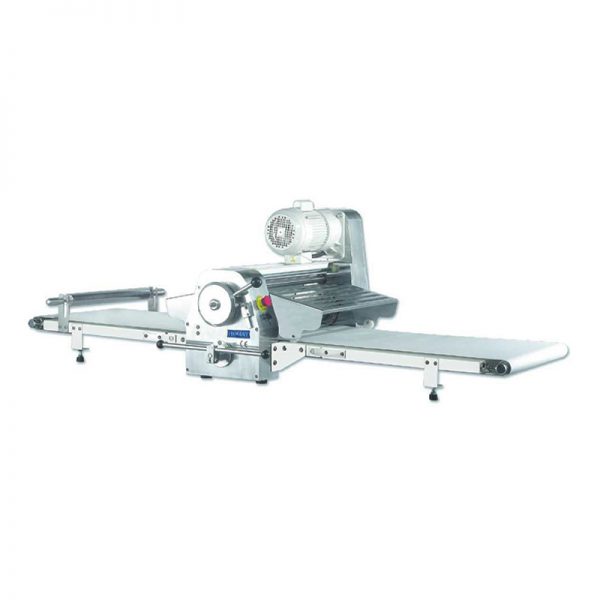

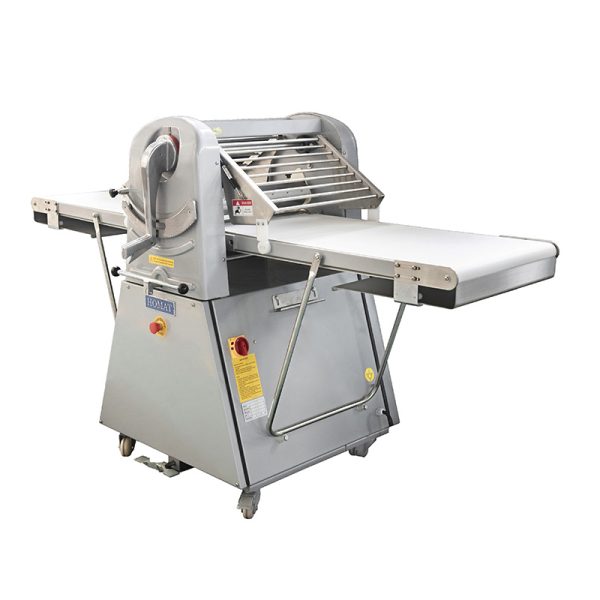

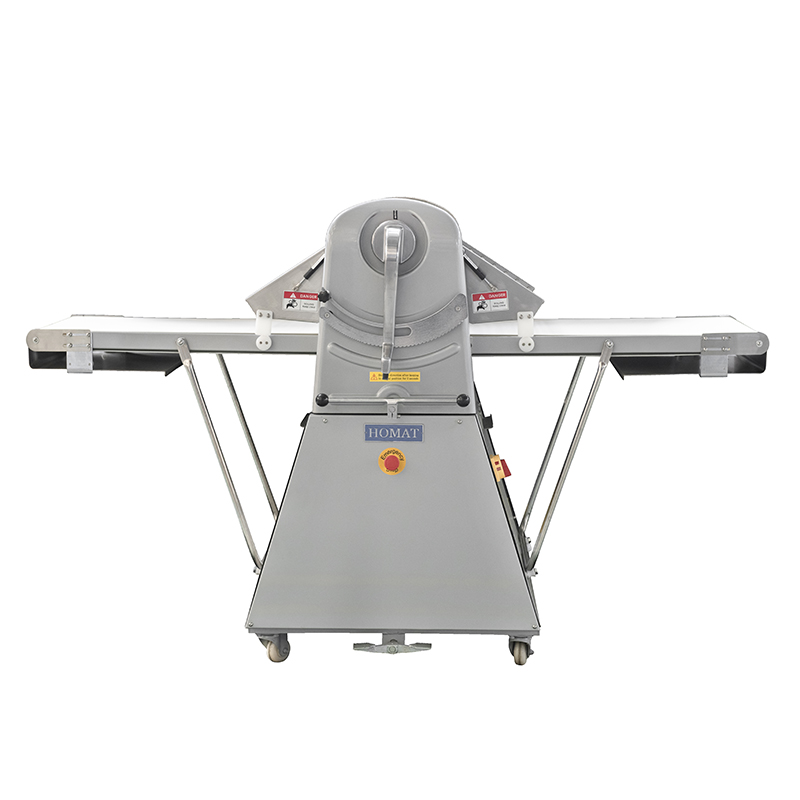

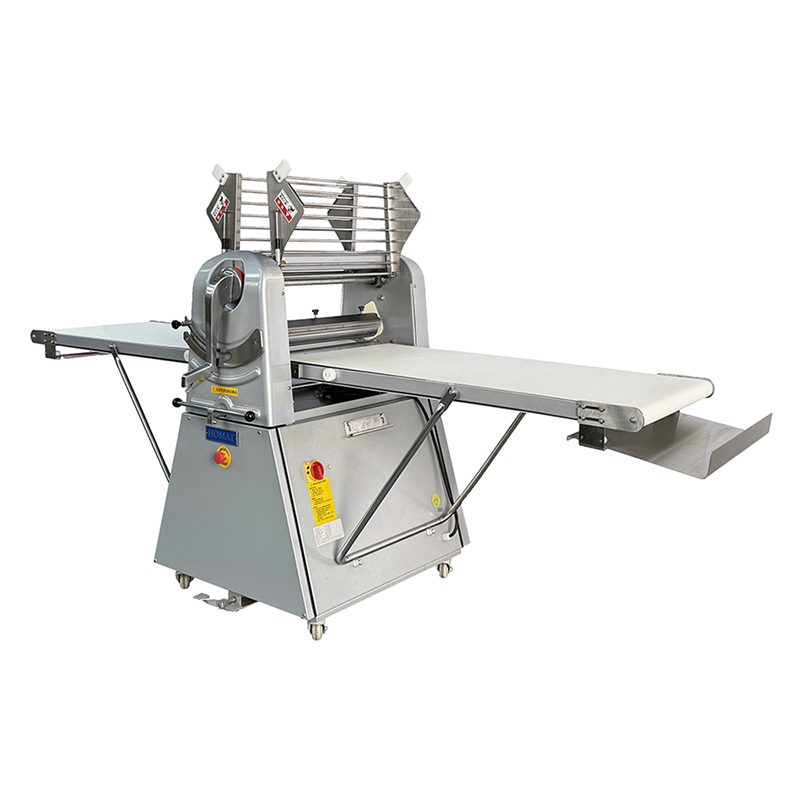

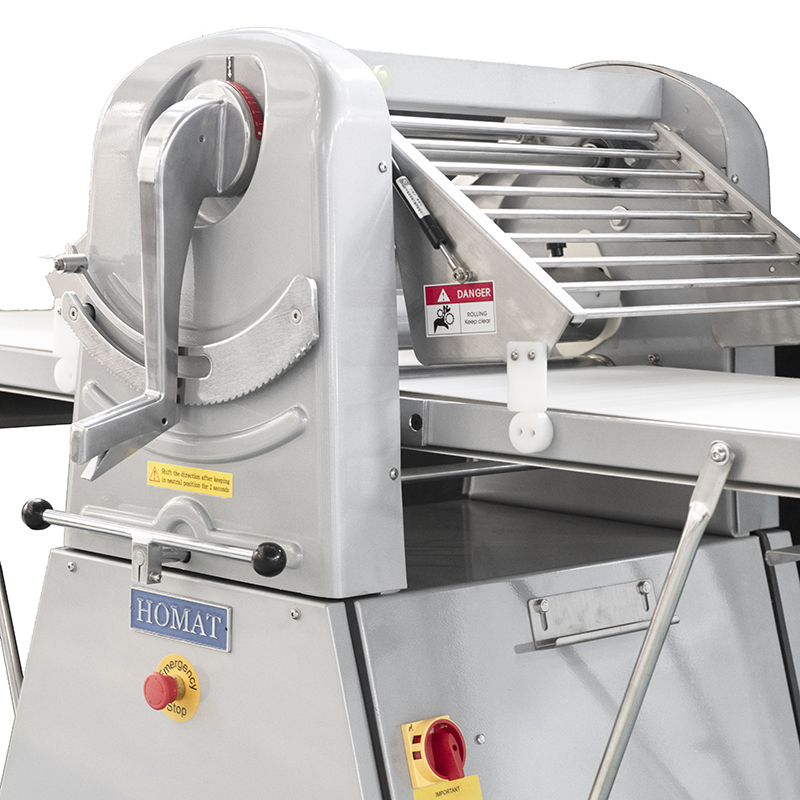

Dough Sheeter Specification
| Model | HM-520E | HM-630E | HM-450B |
| Model | Floor model | Floor model | Table model |
| Voltage(V) | 380 | 380 | 380 |
| Power(Kw) | 0.75 | 0.75 | 0.55 |
| Conveyer table length(mm) | 500×2000 | 630×2400 | 430×1700 |
| Gap between rollers(mm) | 1~35 | 1~35 | 1~35 |
| Weight(Kg) | 200 | 250 | 120 |
| Folded O.D.(mm) | 1200×940×1720 | 1900×1025×1920 | 905×720×895 |
| Length(mm) | 2520 | 3320 | 2210 |
| Depth(mm) | 940 | 1025 | 810 |
| Height(mm) | 1260 | 1260 | 690 |
Product Details
1.Inspect by Quality Inspect Dept. before packing
2.After approved,clean thoroughly
3.Put desiccant inside to prevent damage by humid air,because the humidity is 15 times higher than normal while shipping
4.Put 6cm thick foam board around
5.Fasten with stretch film around,bubble film,and stretch film again
6.Wooden packing, and reinforce with steel belt
7.According to different products, reinforce before loading to the container to prevent damage in transport
